鉺玻璃 (Er Yb Glass)
我司的Er,Yb:glass玻璃產品，又稱鉺玻璃，是一種綜合性能良好的激光玻璃。Er3+ , Yb3+共摻雜磷酸鹽玻璃（Er, Yb:磷酸鹽玻璃）是一種眾所周知且常用的活性介質，它發射的激光在1.5 – 1.6微米的“人眼安全”光譜范圍內。1540nm激光器正處于人眼安全和光纖通信窗口的位置。這就導致了激光的產生和信號的放大。1540nm激光器已廣泛應用于測距儀，雷達，目標識別等領域。磷酸鹽玻璃結合了4I13/2Er3+上激光能級 的長壽命（~8 ms）激光能級和與Yb3+共振的低壽命（2-3 ms） 2F5/2激發態。從4I11/2到4I13/2的快速非輻射多聲子弛豫由于分別在2F5/2 和4I11/2 能級激發的Yb3+和Er3+離子之間的相互作用，能級大大降低了反向能量轉移和上轉換損失。Er3+/Yb3+共摻磷酸鹽玻璃作為L(zhǎng)D泵浦的1540nm人眼安全輻射源，可發射直接用于激光測距儀和電信通信的人眼安全1540nm激光輻射。具有1540nm波長的輻射輸出的Er,Ybglass激光器不需要添加額外的組分。Er3+/Yb3+共摻磷酸鹽玻璃激光器是一種人眼安全波長激光器。由于其體積小、成本低而備受關注。EAT14：Yb3+，Er3+共摻磷酸鹽玻璃，適用于高重復頻率（1-6Hz）激光二極管泵浦1535nm激光器。在這種EAT14玻璃中可以實現高Yb3+摻雜。
特點
- 吸收帶寬
- 熒光壽命長
- 光學質量高
- 眼睛安全
- 斜率效率高
激光規格
| ? | EAT14? | WM4 |
| 受激發射的橫截面（10-20cm2） | 0.8 | 0.75 |
| 熒光壽命（毫秒）* | 7.7-8.0 | 7.7-8.2 |
| 中心激光波長（nm） | 1535 | 1535 |
光學性質
| ? | EAT14 | WM4 |
| 折射率（1535nm） | 1.524 | 1.528 |
| 折射率（d 589.3nm） | 1.532 | 1.536 |
| 阿貝值 | 66 | 66 |
| dn / dT（10-6 /℃）（20?100℃） | -1.72 | -3 |
熱規范
| ? | EAT14? | WM4 |
| 轉變溫度 （℃） | 556 | 530 |
| 軟化溫度 （℃） | 605 | 573 |
| 線性熱膨脹系數（10 -7/ K）（20?100℃） | 87 | 82 |
| 線性熱膨脹系數（10-7 / K）（100?300℃） | 95 | 96 |
| 光程長度的熱系數（10-6/ K）（20?100℃） | 2.9 | 1.4 |
| 導熱系數（25℃）（W / mK） | 0.7 | 0.7 |
其他規格
| ? | EAT14 | WM4 |
| 密度g / cm3 | 3.06 | 2.83 |
| 化學耐久性（在100℃蒸餾水中的失重率）（μg/ hr.cm2） | 52 | 82 |
吸收和發射光譜
射曲線-中-300x230.png) |  |

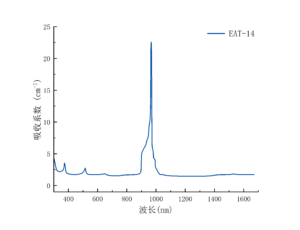

| EAT-14發射曲線 | EAT-14吸收曲線 |
 | 射譜-南京光寶-CRYLINK-300x300-1-300x300.jpg) |
拋光規格
| 方向公差 | < 0.5° |
| 厚度/直徑公差 | ±0.05 mm |
| 表面平整度 | <λ/8@632 nm |
| 波前畸變 | <λ/4@632 nm |
| 表面質量 | 5-Oct |
| 平行性 | 10〞 |
| 垂直性 | 15ˊ |
| 通光孔徑 | >90% |
| 倒角 | <0.1×45° |
| 最大尺寸 | dia (3-12.7)×（3-150）mm2 |
參考文獻
| [1]? B Y Z A ,? A M L ,? A J L , et al. Optical properties of Er 3+ /Yb 3+ co-doped phosphate glass system for NIR lasers and fiber amplifiers[J]. Ceramics International, 2018, 44( 18):22467-22472. |
| [2]? Langar A ,? Bouzidi C ,? Elhouichet H , et al. Er–Yb codoped phosphate glasses with improved gain characteristics for an efficient 1.55μm broadband optical amplifiers[J]. Journal of Luminescence, 2014, 148:249-255. |
| [3]? A C B ,? A T M ,? B S R D , et al. Sensitizing effect of Yb 3+ ions on photoluminescence properties of Er 3+ ions in lead phosphate glasses: Optical fiber amplifiers[J]. Optical Materials, 2018, 86:256-269. |
| [4]? Ryabtsev G I ,? Bezyazychnaya T V ,? Parastchuk V V , et al. Spectral and temporal properties of diode-pumped Er, Yb: glass laser[J]. Optics Communications, 2005, 252(4-6):301-306. |
| [5]? Francini R ,? Giovenale F ,? Grassano U M , et al. Spectroscopy of Er and Er–Yb-doped phosphate glasses[J]. Optical Materials, 2000, 13(4):417-425. |
| [6]? Sendova M , JA Jiménez,? Honaman C . Rare earth-dependent trend of the glass transition activation energy of doped phosphate glasses: Calorimetric analysis[J]. Journal of Non-Crystalline Solids, 2016, 450:18-22. |
| [7]? Chen C ,? He R ,? Tan Y , et al. Optical ridge waveguides in Er3+/Yb3+ co-doped phosphate glass produced by ion irradiation combined with femtosecond laser ablation for guided-wave green and red upconversion emissions[J]. Optical Materials, 2016. |
| [8]? Balaji S , D Ghosh,? Biswas K , et al. Insights into Er 3+ Yb 3+ energy transfer dynamics upon infrared ~1550nm excitation in a low phonon fluoro-tellurite glass system[J]. Journal of Luminescence, 2017, 187:441-448. |
| [9]? Feng S ,? Fei L ,? Li S , et al. The fractional thermal factor in LD-pumped Yb3+/Er3+ codoped phosphate glass. IEEE, 2009. |
| [10]? Dan G ,? Mihailov S J ,? Walker R B , et al. Bragg Gratings Made With a Femtosecond Laser in Heavily Doped Er–Yb Phosphate Glass Fiber[J]. IEEE Photonics Technology Letters, 2007, 19(12):943-945. |
| [11]? Zhu M ,? Tongzhao G U . Spectroscopic properties of Er3+/Yb3+ co-doped tantalum-niobium phosphate glasses for optical waveguide laser and amplifier[C]// International Conference on Microwave & Millimeter Wave Technology. IEEE Xplore, 2004. |
| [12]? Danger T ,? Huber G ,? DeNker B I , et al. Diode-pumped cw laser around 1.54 m using Yb, Er-doped silico-boro-phosphate glass[C]// Conference on Lasers & Electro-optics. IEEE, 1998. |
| [13] S Jiang, SJ Hamlin, JD Myers,等. High-average-power 1.54-μm Er3+:Yb3+-doped phosphate glass laser.? 1996. |
| [14]? Osellame R ,? Valle G D ,? Chiodo N , et al. Mode-locked and single-longitudinal-mode waveguide lasers fabricated by femtosecond laser pulses in Er:Yb-doped phosphate glass. IEEE, 2007. |
| [15]? Valles J A ,? Rebolledo M A , J Cortés. Full characterization of packaged Er-Yb-codoped phosphate glass waveguides[J]. IEEE Journal of Quantum Electronics, 2006, 42(2):152-159. |
| [16]? Aseev V A ,? Ulyashenko A M ,? Nikonorov N V , et al. Comparison of highly doped Ytterbium-erbium phosphate and silicate glasses for microchip lasers[C]// International Conference on Advanced Optoelectronics & Lasers. IEEE, 2005. |
| [17]? Qiu T ,? Li L ,? Temyanko V , et al. Generation of high power 1535nm light from a short cavity cladding pumped Er:Yb phosphate fiber laser[M].? 2004. |
| [18]? Buchenkov V A ,? Krylov A A ,? Mak A A . 12 mJ 10 Hz Diode Pumped A/O Q-switched Yb:Er:Glass Laser[C]// 2018:48-48. |
| [19]? Kalashnikov V L ,? Shcherbitsky V G ,? Kuleshov N V , et al. Optimization of passively Q-switched Er:glass laser[C]// Lasers and Electro-Optics, 2002. CLEO ’02. Technical Digest. Summaries of Papers Presented at the. IEEE, 2002. |
| [20]? Simondi-Teisseire B ,? Viana B ,? Lejus A M , et al. Room-temperature CW laser operation at ~1.55 μm (eye-safe range) of Yb:Er and Yb:Er:Ce:Ca2Al2SiO7 crystals[J]. IEEE Journal of Quantum Electronics, 1996, 32(11):2004-2009. |
| [21]? Wu R ,? Hamlin S J ,? Myers J D , et al. Infrared image studies of diode-pumped Yb3+, Er3+:glass[C]// Conference on Lasers and Electro-Optics. 1996. |
| [22]? Tan F ,? Yu F ,? Wang L , et al. Enhancement in Laser Performance of Er3+/Yb3+ Co-doped Phosphate Glass Materials[J]. Journal of Wuhan University of Technology-Mater. Sci. Ed.? 2015, 30(3):442-446. |
| [23]? Sattar A ,? Azzouz I M ,? Shafik M S , et al. Effect of sensitizers on the optical properties of Er3+ions in erbium glass lasers[C]// Workshop on Photonics & Its Application at Egyptian Engineering Faculties & Institutes. IEEE, 2002. |
| [24]? Kervevan L ,? Gilles H ,? Girard S , et al. Self-mixing laser Doppler velocimetry with a dual-polarization Yb:Er glass laser[J]. Applied Physics B, 2007, 86(1):169-176. |
| [25]? Karlsson G ,? Laurell F ,? Tellefsen J , et al. Development and characterization of Yb-Er laser glass for high average power laser diode pumping[J]. Applied Physics B, 2002, 75(1):41-46. |
| [26]? Vitkin V ,? Krylov A ,? Polishchuk A , et al. 40 Hz 1.3 mJ Q-switched Yb:Er:glass Laser[C]// 2018:50-50. |
| [27]? Bhardwaj A ,? Agrawal L ,? Pal S , et al. Optimization of passively Q -switched Er:Yb:Cr:phosphate glass laser: theoretical analysis and experimental results[J]. Applied Physics B, 2007, 86(2):293-301. |
| [28]? Kalashnikov V L ,? Shcherbitsky V G ,? Kuleshov N V , et al. Pulse energy optimization of passively Q-switched flash-lamp pumped Er:glass laser[J]. Applied Physics B, 2002, 75(1):35-39. |
| [29] Summaries of papers presented at the Conference on Lasers and Electro-optics.? 1999. |
| [30] Third Workshop on Photonics and its Application at Egyptian Engineering Faculties and Institutes (Cat. No.02EX509)[C]// Workshop on Photonics & Its Application at Egyptian Engineering Faculties & Institutes. IEEE, 2002. |
如果你對我們的鉺玻璃 (Er Yb Glass)感興趣，請聯系我們獲取價格或申請樣品。
